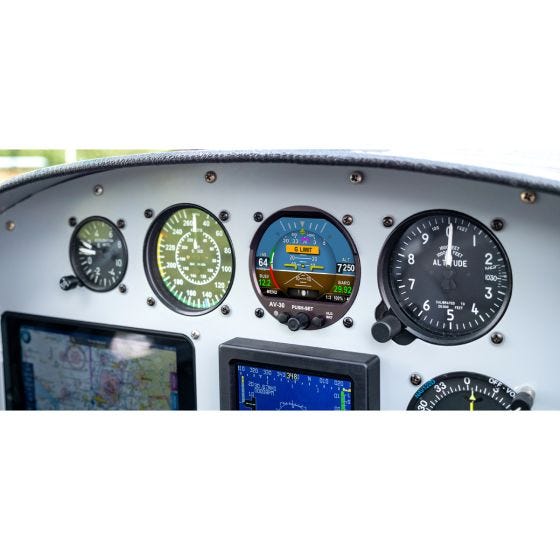

Upgrade your legacy vacuum-driven instruments to digital precision attitude and directional gyro customizable displays. The AV-30C fits in your existing 3” panel slot. By mounting from behind, it preserves the “round dial” look, and eliminates the need for cutting or replacing your panel. Stay on course with autopilot integration—when paired with the APA-MINI autopilot adapter (sold separately) the heading bug interfaces to legacy S-TEC autopilots.

Features Include:

  • Primary Attitude
  • Primary Slip
  • Primary Direction Indication
  • Probeless Angle of Attack
  • Indicated Airspeed (KTS/MPH)
  • Altitude / Vertical Trend / Alert
  • +8 / -8 G-Meter
  • OAT / TAS / Density Altitude
  • Bus Voltage
  • GPS Navigational Data Overlay
  • GPS HSI / 360 Rose / Arc Map Mode
  • Customizable Colors, Fonts, & Layout
  • Audio Alerts (AoA, G, Roll Limits)

Technical Specifications

  • Input Voltage Nominal: +10 to +32 VDC
  • Input Voltage Max: +60 VDC
  • Input Power Nominal: 6 Watts (0.5 Amps @ 12VDC)
  • Input Power Max: 12 Watts (1.0 Amps @ 12VDC)
  • Required Circuit Breaker: 2 Amp
  • Operation on Battery: 2 Hours Typ @ 20°C / 30 Minutes Min @ -20C
  • Mounting Configuration: 3 1/8” Round Instrument Hole
  • Dimensions wo/Connector: 3.38 x 3.38 x 1.6 Inches
  • Weight: 0.50 Lbs.
  • Electrical Connector: 15 Pin Male D-Sub
  • Pneumatic Connectors: ¼” OD Quick Connect
  • Mounting: (4X) #6-32 Machine Screws
  • Case Material: Billet Aluminum
  • Operating Temp: -20°C to +55°C
  • Storage Temp (48 Hrs): -30°C to +80°C
  • Humidity (48 Hrs): 90% RH
  • Display Diagonal Size: 3” Circular
  • Display Contrast Ratio (Typical): 500
  • Brightness (Typical): 1000 cd/m2
  • Viewing Angle Left/Right: 60°
  • Viewing Angle Up: 45°
  • Viewing Angle Down: 10°
  • Backlight Lifetime (Typical): 50,000 Hrs
  • Warranty: 2 years
