Garmin GDL 52 SiriusXM/ADS-B Receiver
All-in-one device provides weather, traffic, audio and AHRS

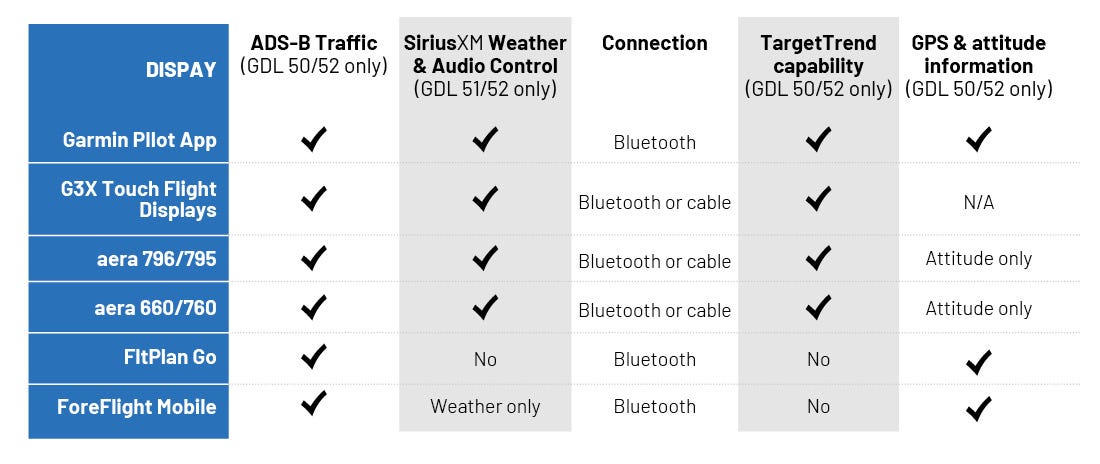

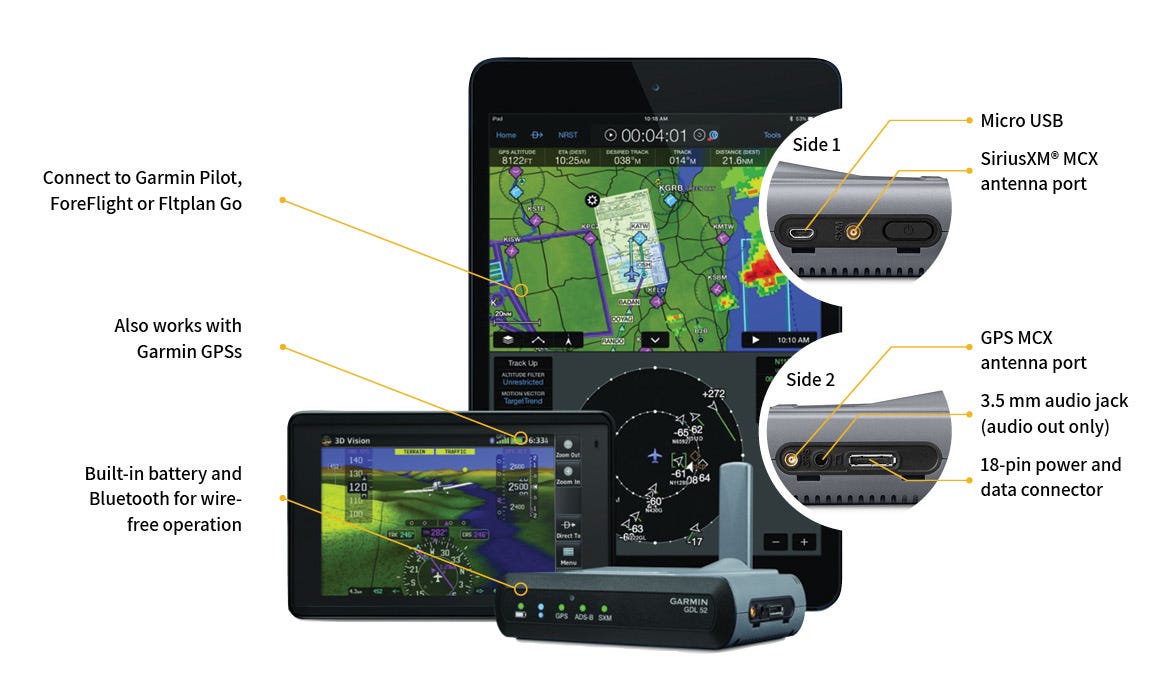

You can have it all with the GDL 52 from Garmin: SiriusXM satellite weather and audio, subscription-free ADS-B weather, dual band ADS-B traffic, GPS position, even backup attitude information. Flexible display options mean you can view weather and traffic information on the Garmin Pilot app on iOS or Android, plus portable GPSs like the aera 660 and 795/796. The GDL 52 even works with the FltPlan Go app and ForeFlight.
Weather is delivered by satellite, allowing reception at any altitude, anywhere in the US and southern Canada
Altitude heading reference system (AHRS) is a backup attitude source
View high resolution radar, lightning, satellite imagery, METARs, TAFs, TFRs, echo tops, Pilot Reports and more
Built-in WAAS GPS provides precise location
Listen to SiriusXM Radio in flight, with over 150 channels of music, sports and entertainment
5-hour rechargable battery means no wires
View traffic with the included dual band ADS-B receiver
Bluetooth connection to the Garmin Pilot app on iOS or Android
Access subscription-free FIS-B weather when in the US
Also works with ForeFlight Mobile and the FltPlan Go app on iOS or Android
Connect to Garmin portables: aera 760/660 and 796/795

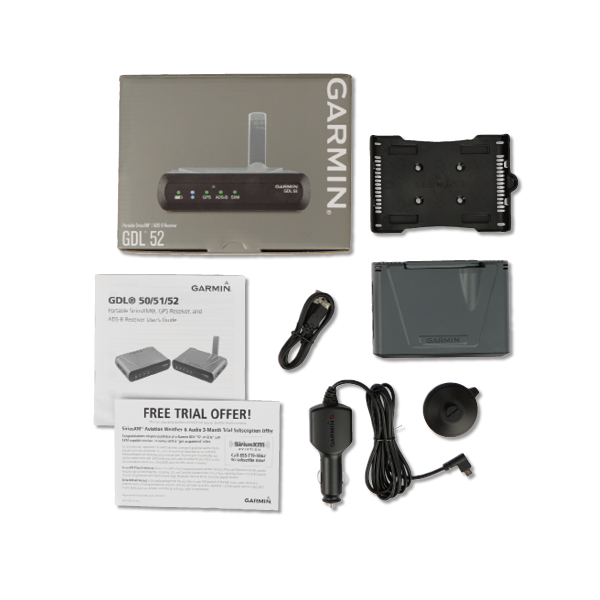

Includes mounting bracket and vehicle power cable
Coverage at any altitude

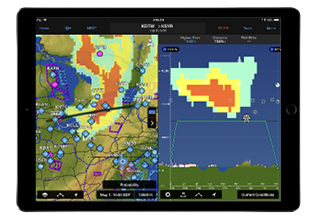

Continuous SiriusXM satellite updates — accessible by ground and air — can help you make better, more timely flight decisions. The SiriusXM network’s powerful satellites deliver seamless coverage across the continental U.S. and its coastal regions as well as southern Canada. Choose from available SiriusXM aviation packages that provide METAR data and animated NEXRAD imagery plus current reports on precipitation, lightning, winds aloft, echo tops, turbulence, freezing levels, TFRs and more. To help you maintain the most current weather picture, the GDL 52 receiver can queue the weather from SiriusXM while your display device is sleeping or turned off so it automatically updates when you turn the screen back on.
Dual band ADS-B receiver too

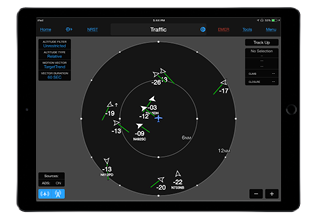

When flying in the US, the GDL 52 can also receive subscription-free weather from the FAA’s ADS-B ground stations. This includes NEXRAD radar, METARs, TAFs, TFRs, and more. In addition to comprehensive weather data, pilots utilizing GDL 52 can receive “dual-link” ADS-B traffic information and audible alerts to easily identify potential traffic conflicts. ADS-B traffic can be overlaid on the dedicated traffic page or the moving map, as well as IFR/VFR charts on compatible devices. Exclusive to Garmin displays, patented TargetTrend™ and TerminalTraffic™ technologies further enhance the traffic picture.

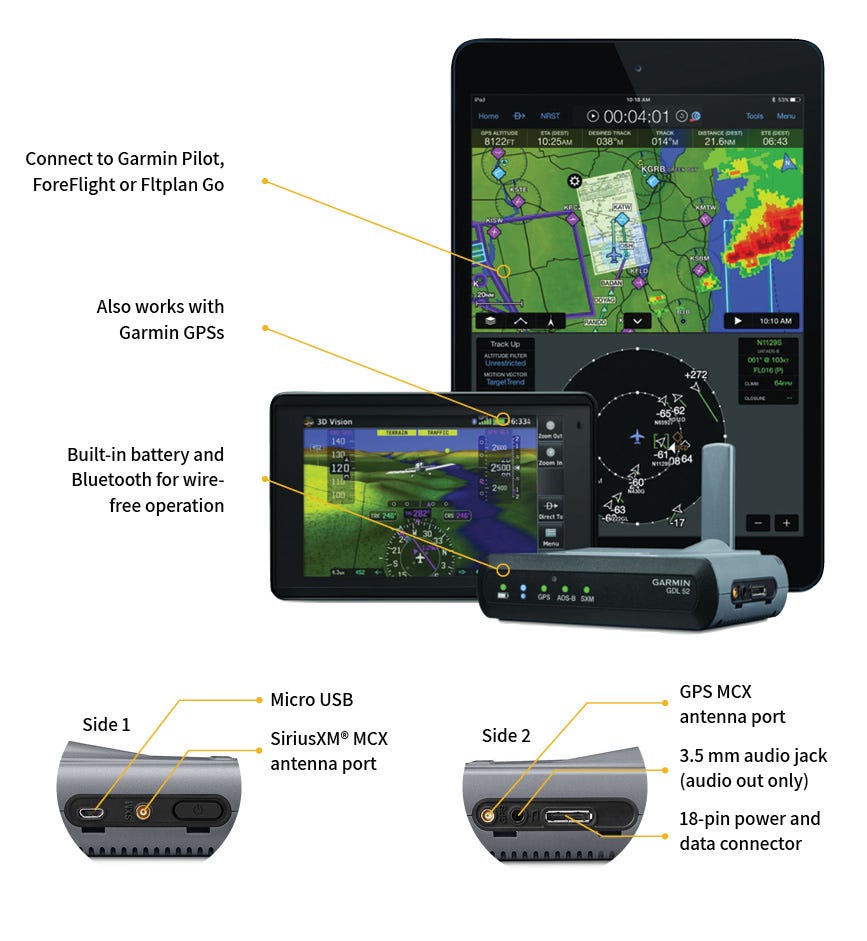

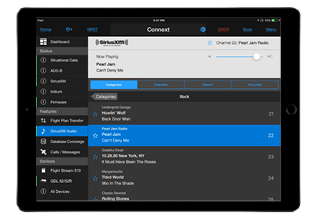

By simply connecting a compatible Bluetooth headset or audio panel to GDL 52, you can wirelessly listen to your choice of high-quality audio entertainment channels provided by SiriusXM. Volume adjustments and station selection may be accessed through your compatible Garmin aviation portable or mobile device app. If you prefer, a 3.5 mm stereo audio jack positioned on the side of your GDL 52 makes it easy to provide a hardwired audio out connection to an auxiliary device or audio panel in your aircraft.
Built-in GPS and Attitude Sensors for SVX Display

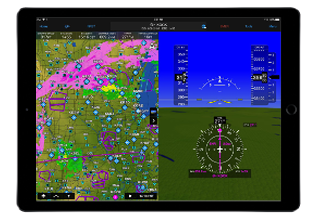

In addition to its weather and audio entertainment capabilities, the GDL 52 feature set includes a built-in WAAS GPS receiver. This enables GDL 52 to deliver highly accurate aircraft position, speed and altitude information to your compatible mobile device app. Also, built-in attitude sensors enable select Garmin aviation portables and apps with SVX synthetic vision technology to serve as a backup attitude reference during your flights. With virtual terrain, obstacles, runways, horizon cues, HSI, GPS speed, altitude and more, this brings a whole new perspective to your portable navigation.
