tailBeacon ADS-B Out Transmitter by uAvionix

Fly July Special!
FREE uAvionix Multi-Tool
$50 value - ends 8.2

Free Shipping!

Out of stock

Expected 08/06/21

Order now and we will ship as soon as it's available.

SKU
2836A
$1,999.00

FREE uAvionix Multi-Tool! ($50 value)

Purchase a tailBeacon and receive a FREE uAvionix Multi-Tool.

Note: Multi-Tool will not be added to your cart or invoice, it will automatically ship at no charge with your order.







>

Easy, affordable ADS-B Out

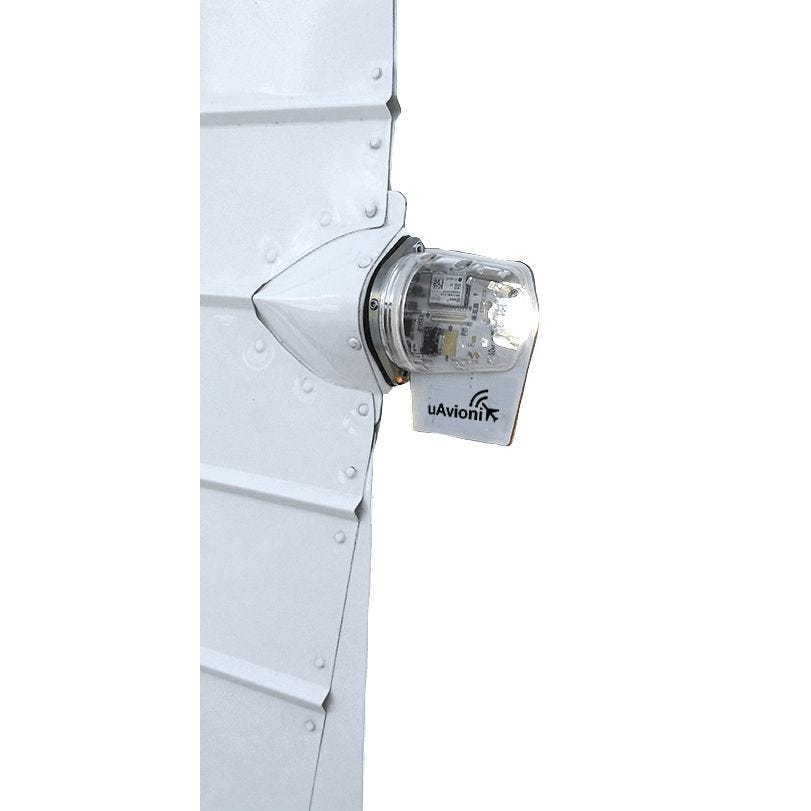

The tailBeacon replaces your aft aircraft position light with a simple solution to become ADS-B Out compliant. Remove your old position light and install the new tailBeacon in the same location. It reuses the existing power and ground to your current position light. Two screws, two wires, and an easy setup app are all it takes for most installations. Works with any mode C or mode S transponder.

Features:

Tail Beacon

978 UAT transmitter with a specially designed blade antenna

The design minimizes installation error and antenna placement issues.

Self-contained WAAS GPS

A built-in WAAS GPS provides compliant position data for ADS-B transmission. No additional wiring or external GPS antenna mounting is required.

quick release mounting

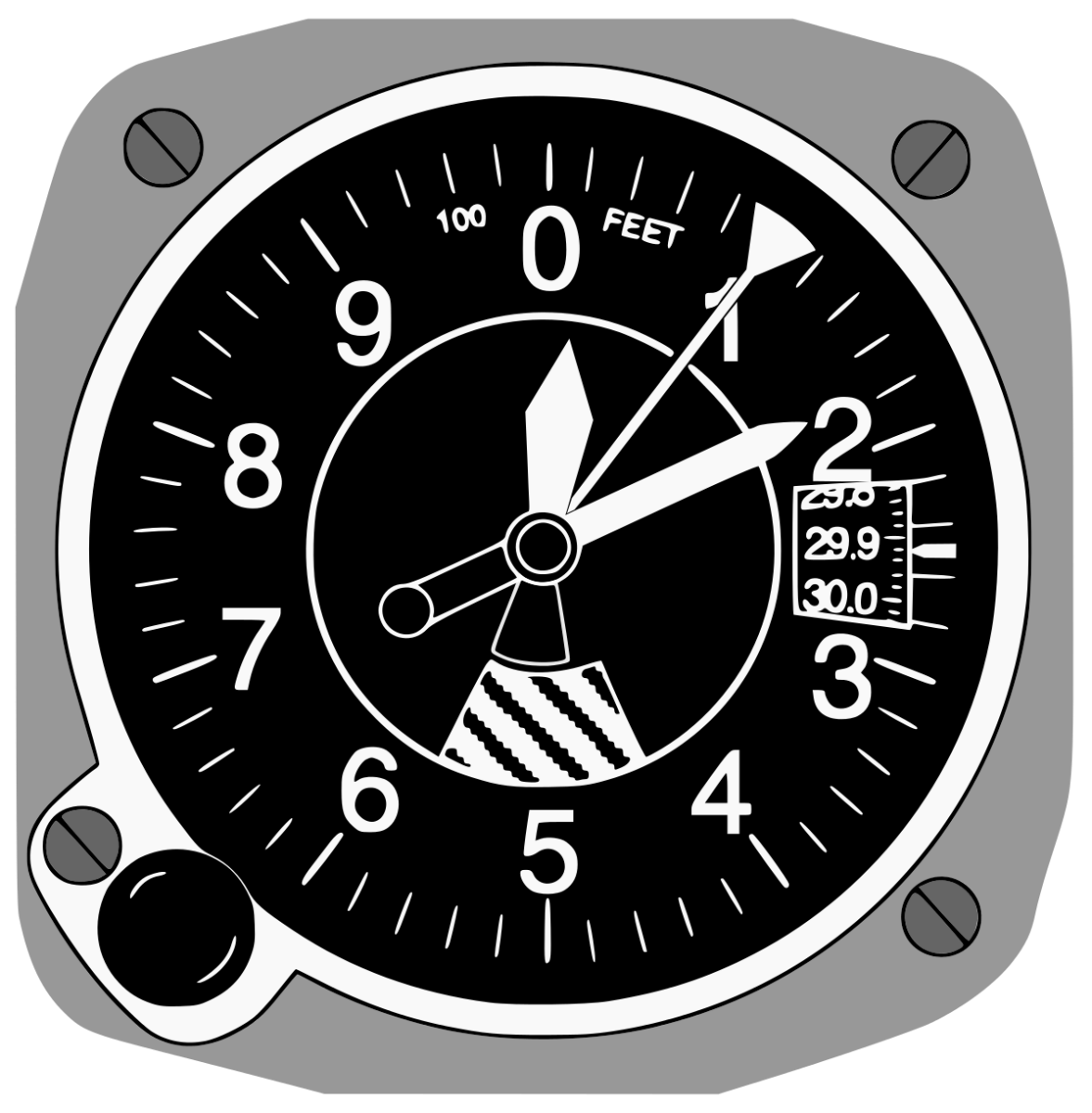

Integrated altitude encoder

Integrated altitude encoder

The integrated altitude encoder does not require connection to the aircraft static pressure system. The tailBeacon continuously calibrates the integrated altitude encoder for correspondence with the aircraft transponder’s altitude encoder.

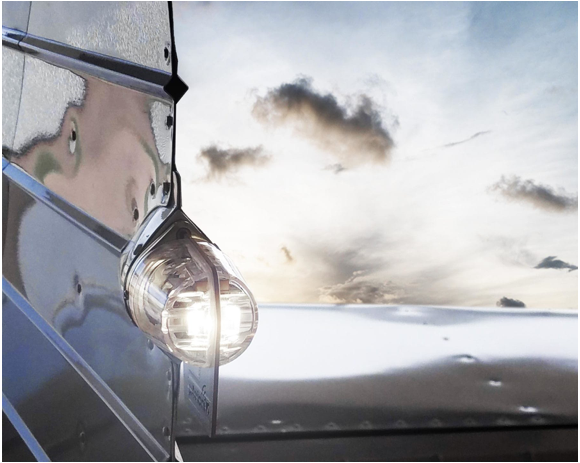

LED Nav Light

LED Nav light provides the required white light for the tail.

Tail Beacon

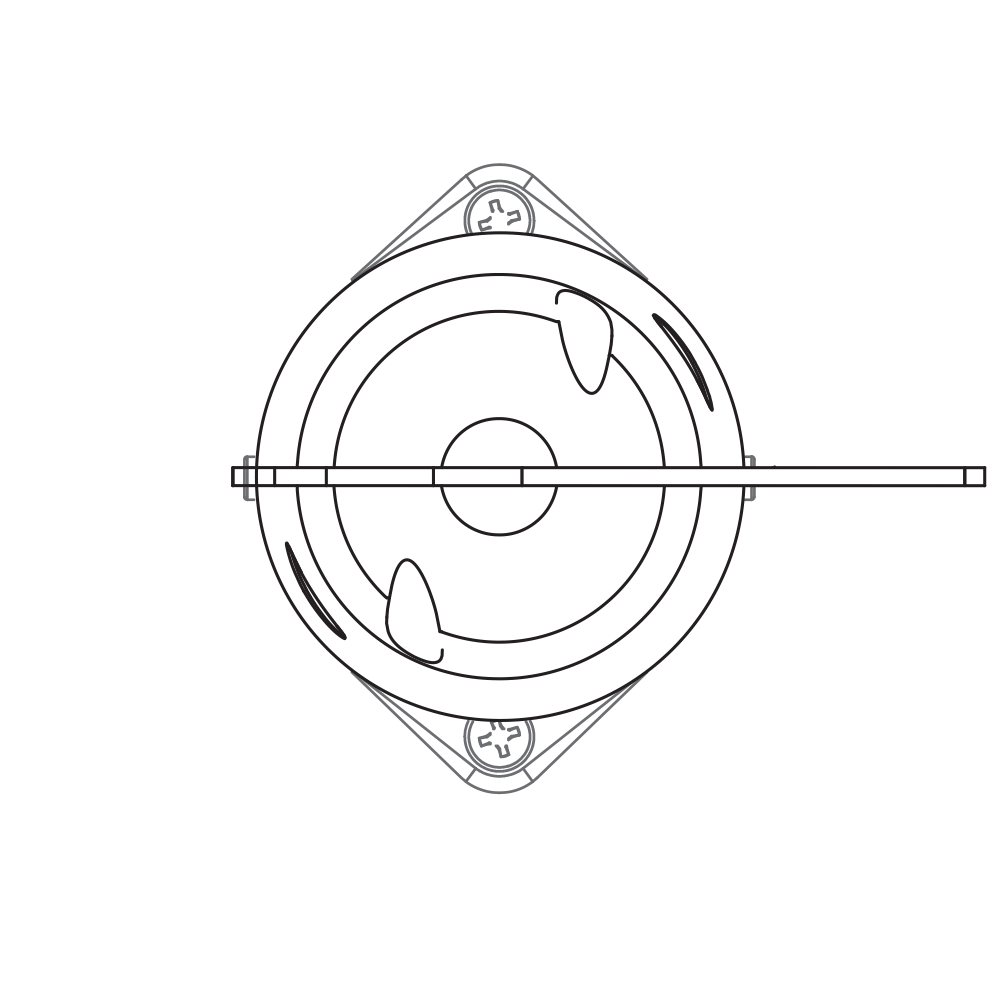

Mounts with Turn

Mounts with a Turn

The new tailBeacon is the easiest, most affordable installation on the market. Simply remove your existing position light, install the mounting bracket, connect to existing power wires, slide in tailBeacon, and turn to lock in place. It’s that easy!

Easy configuration

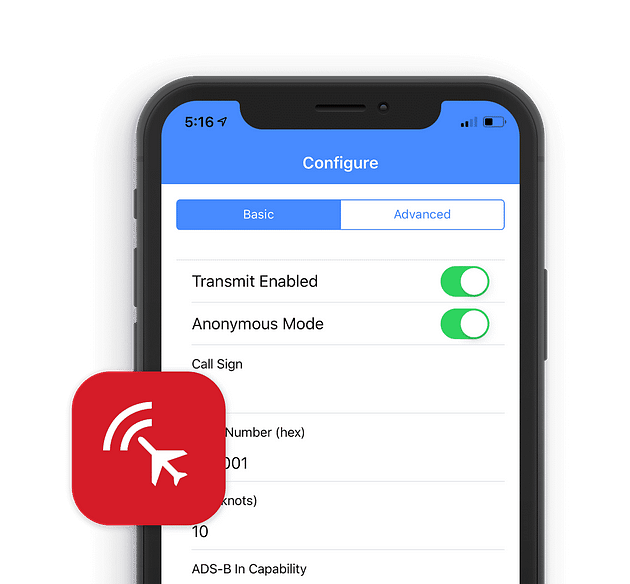

The tailBeacon mobile application allows installers to easily configure the ICAO address, emitter type, and more by accessing the aircraft registration information stored online. No cables required.

Easy configuration
transponder

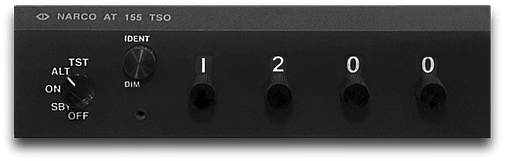

Works with your existing Mode C or S Transponder

TailBeacon works with any existing transponder. uAvionix’s patented power transcoder technology seamlessly communicates with your existing transponder, any transponder, over your aircraft’s electrical system. tailBeacon and skyBeacon are the only UAT ADS-B Out devices on the market that work with Mode S transponders.

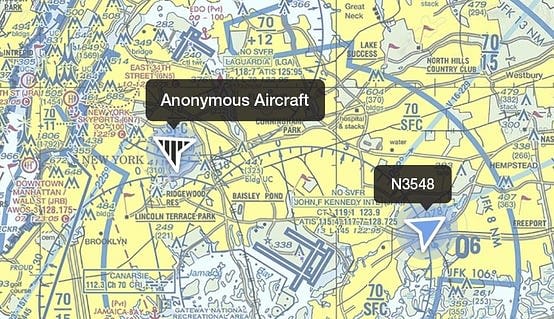

Remain anonymous

Just because you are ADS-B equipped, doesn’t mean you want to be tracked. With tailBeacon’s Anonymous Mode, your aircraft identification remains hidden from the ADS-B Out signal while squawking 1200. Anonymous Mode keeps the skies safe while protecting your privacy.

Anonymous Mode

Specs

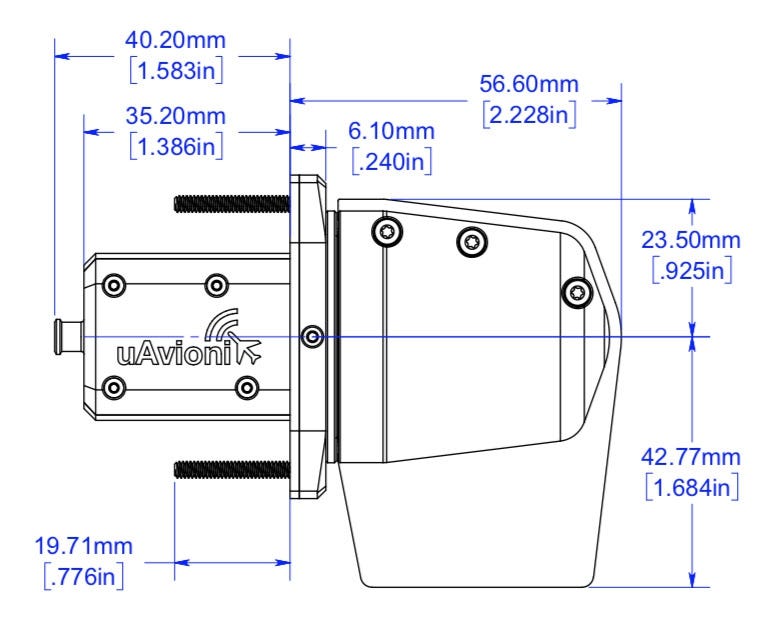

tailbeacon side view

SPECIFICATION

VALUE

INPUT VOLTAGE 11-31V DC
OPERATING DRIVE 3 watts
SIZE 92x43x73mm
WEIGHT 70 grams
SDA/SIL 2/3
OPERATING TEMP -45 to 70°C
978MHz UAT Transmitter
POWER CLASSIFICATION DO-282B Medium Power
WAAS GPS
TRACKING -166dBm
REACQUISITION -160dBm
COLD START -148dBms
LED Position Light
COLOR Aviation White
INTENSITY 40 candelas
WIFI Configuration
PHYSICAL 802.11b/g/n
APP COMPATIBILITY iOS, Android
Power Transcoder Decodes Mode A, C and S via Power Transcoder



The tailBeacon replaces your aft aircraft position light with a simple solution to become ADS-B Out compliant. Remove your old position light and install the new tailBeacon in the same location. It reuses the existing power and ground to your current position light. Two screws, two wires, and an easy setup app are all it takes for most installations. Works with any mode C or mode S transponder.

Features:

  • 978 UAT transmitter with a specially designed blade antenna. The design minimizes installation error and antenna placement issues.
  • A built-in WAAS GPS provides compliant position data for ADS-B transmission. No additional wiring or external GPS antenna mounting is required.
  • The integrated altitude encoder does not require connection to the aircraft static pressure system. The tailBeacon continuously calibrates the integrated altitude encoder for correspondence with the aircraft transponder’s altitude encoder.
  • LED Nav light provides the required white light for the tail.
  • Easy configuration - the tailBeacon mobile application allows installers to easily configure the ICAO address, emitter type, and more by accessing the aircraft registration information stored online. No cables required.



Works with Your Existing Mode C or S Transponder

tailBeacon works with any existing transponder. uAvionix’s patented power transcoder technology seamlessly communicates with your existing transponder, any transponder, over your aircraft’s electrical system. tailBeacon and skyBeacon are the only UAT ADS-B Out devices on the market that work with Mode S transponders.



Remain Anonymous

Just because you are ADS-B equipped, doesn’t mean you want to be tracked. With tailBeacon’s Anonymous Mode, your aircraft identification remains hidden from the ADS-B Out signal while squawking 1200. Anonymous Mode keeps the skies safe while protecting your privacy.



SpecificationValue
Input Voltage11-31V DC
Operating Drive3 watts
Size92x43x73mm
Weight70 grams
SDA/SIL2/3
Operating Temp-45 to 70°C
978MHz UAT Transmitter
Power ClassificationDO-282B Medium Power
WAAS GPS
Tracking-166dBm
Reacquisition-160dBm
Cold Start-148dBms
LED Position Light
ColorAviation White
Intensity40 candelas
Wi-Fi Configuration
Physical802.11b/g/n
App CompatibilityiOS, Android
Power TranscoderDecodes Mode A, C and S via Power Transcoder



Resources:

Click Here for Data Sheet

Click Here for Mounting Instructions:

Click Here for Installation Guide:
