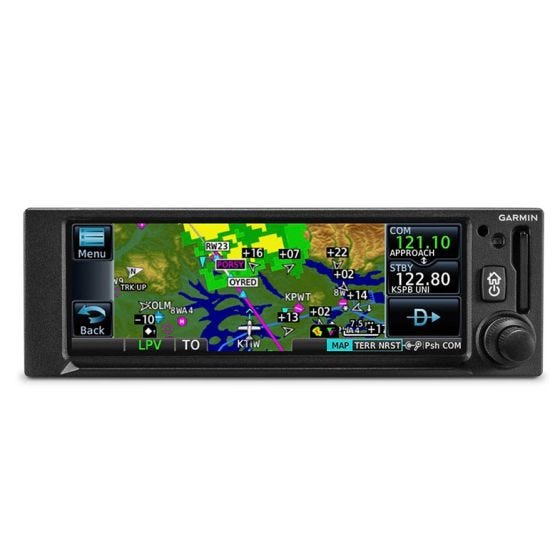

Garmin GNC 355 GPS/COM

In stock
SKU
4904A
$6,295.00
This two-in-one touchscreen navigator is a great way to bring your radio stack into the 21st century. IFR-approved GPS offers LPV approach capability to hundreds of airports, and the easy-to-use COM radio offers quick tuning features with crystal clear communications.

Affordable upgrade for older panels

This two-in-one touchscreen navigator is a great way to bring your radio stack into the 21st century. IFR-approved GPS offers LPV approach capability to hundreds of airports, and the easy-to-use COM radio offers quick tuning features with crystal clear communications. Everything is easily controlled from the vibrant color touchscreen, with two concentric knobs for backup.

Features:

  • IFR approach approved GPS capable of flying LPV approaches
  • Direct-to, flight plan, and instrument procedure navigation
  • Graphical flight plan editing
  • Smart Airspace alerts you only when you need to know
  • Built-in COM radio with 25 kHz spacing
  • Preloaded frequency database makes it simple to find the right frequency
  • Wireless flight plan transfer from your mobile devices
  • Backup attitude via built-in AHRS
  • Standard 6.25” wide by 2” tall design fits easily into existing avionics stack
  • Easy-to-use touchscreen with intuitive menus
  • Compatible with a variety of Garmin avionics, including G3X Touch, G5 display, GFC 500/600 autopilots
  • Also works with legacy autopilots and CDI/EHSI indicators like the KI 208/209
  • Compatible with Flight Stream 510 for wireless database updates
  • Complete kit includes GPS antenna

Designed for Class I/II aircraft that weigh 6,000 lbs. or less, as well as experimental/amateur-built (EAB) aircraft. STC list includes over 700 aircraft types.

Specifications:

  • Part number: 010-02232-51
  • TSO applicability: C128a; 2C128; C146e Class 3; C157b Category 1; C165a; C169a Class C, E, 4, 6; 2C169a Class C, E, H1, H2, 4, 6; C195b Category B1, B3, B5, B7
  • Display size: 4.8" (122.5 mm) diagonal
  • Display resolution: 732 pixels (W) x 240 pixels (H)
  • Unit bezel height: 2.02" (51.0 mm)
  • Unit bezel width: 6.25" (159.0 mm)
  • Unit depth with connectors: 11.23" (285 mm) (measured from face of aircraft panel to rear of connector backshells)
  • Unit weight: 3.3 lbs (1.5 kg)
  • Maximum altitude: 35,000 ft
  • Input voltage range: 9 VDC - 33 VDC
  • Maximum display brightness: 260 fL
  • Operating temperature range: -20° C to 55° C (-4° F to 131° F)
  • Bluetooth version: 4.2
  • Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
  • LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
  • Maximum velocity: 1,000 knots (above 60,000 feet)
  • Position update Interval: 0.2 sec (5 Hz)

More information:

Download the Pilot's Guide

Affordable upgrade for older panels

This two-in-one touchscreen navigator is a great way to bring your radio stack into the 21st century. IFR-approved GPS offers LPV approach capability to hundreds of airports, and the easy-to-use COM radio offers quick tuning features with crystal clear communications. Everything is easily controlled from the vibrant color touchscreen, with two concentric knobs for backup.

Features:

  • IFR approach approved GPS capable of flying LPV approaches
  • Direct-to, flight plan, and instrument procedure navigation
  • Graphical flight plan editing
  • Smart Airspace alerts you only when you need to know
  • Built-in COM radio with 25 kHz spacing
  • Preloaded frequency database makes it simple to find the right frequency
  • Wireless flight plan transfer from your mobile devices
  • Backup attitude via built-in AHRS
  • Standard 6.25” wide by 2” tall design fits easily into existing avionics stack
  • Easy-to-use touchscreen with intuitive menus
  • Compatible with a variety of Garmin avionics, including G3X Touch, G5 display, GFC 500/600 autopilots
  • Also works with legacy autopilots and CDI/EHSI indicators like the KI 208/209
  • Compatible with Flight Stream 510 for wireless database updates
  • Complete kit includes GPS antenna

Designed for Class I/II aircraft that weigh 6,000 lbs. or less, as well as experimental/amateur-built (EAB) aircraft. STC list includes over 700 aircraft types.

Specifications:

  • Part number: 010-02232-51
  • TSO applicability: C128a; 2C128; C146e Class 3; C157b Category 1; C165a; C169a Class C, E, 4, 6; 2C169a Class C, E, H1, H2, 4, 6; C195b Category B1, B3, B5, B7
  • Display size: 4.8" (122.5 mm) diagonal
  • Display resolution: 732 pixels (W) x 240 pixels (H)
  • Unit bezel height: 2.02" (51.0 mm)
  • Unit bezel width: 6.25" (159.0 mm)
  • Unit depth with connectors: 11.23" (285 mm) (measured from face of aircraft panel to rear of connector backshells)
  • Unit weight: 3.3 lbs (1.5 kg)
  • Maximum altitude: 35,000 ft
  • Input voltage range: 9 VDC - 33 VDC
  • Maximum display brightness: 260 fL
  • Operating temperature range: -20° C to 55° C (-4° F to 131° F)
  • Bluetooth version: 4.2
  • Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
  • LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
  • Maximum velocity: 1,000 knots (above 60,000 feet)
  • Position update Interval: 0.2 sec (5 Hz)

More information:

Download the Pilot's Guide
